Reinforced Soil Slope Structures

Reinforced Soil Slope Structures (RSSS) & Mechanically Stabilized Earth Walls (MSEW)

Reinforced slope structures are geotechnical systems consisting of reinforcing elements which primarily include Mechanically stabilized earth walls (MSE) and Reinforced soil slopes (RSS). MSE walls and RSS are constructed by placing alternating layers of reinforcement and compacted soil behind a facing element to form a composite material that acts integrally to restrain lateral forces.

The reinforced soil technique is a construction method that is thousands of years old and has used different types of soil reinforcing materials. Several types of construction systems utilize the concept of soil reinforcement.

Common types of modern soil-reinforcing elements are steel strips, welded steel grids, wire mesh, geogrids, and geotextile sheets. The use of a facing system prevents soil raveling between the reinforcing elements and allows very steep slopes and vertical walls to be constructed safely. A wide range of materials is used as facing of MSE Walls which include precast concrete panels, dry cast modular blocks, welded wire mesh, wrap around geosynthetics, and gabions.

Another type of soil-reinforced block wall systems that make use of concrete blocks at the face and incorporate geogrids as reinforcing elements. These systems have proven to be extremely viable from technical, aesthetic, and economic points of view.

The T-Block Retaining wall system offers the T- block, the geogrid, and the best connection system, fully supported by a comprehensive professional design approach.

Projects associated with the work:

Restoration of Basic Strip of Runway, Prevention of soil Erosion, Extension of Apron and associated works at Shimla Airport on Design & Build basis.
Four Lanning of Biaora-Dewas section from 426.100KM 566.450 KM of NH-3 in the state of Madhya Pradesh under NHDP Phase-4 in BOT Mode.
Balance Work for Four Lanning of Kiratpur to Ner Chowk Section of NH-21 (From KM 12+750 to 26+500, Km 126+500 to Km 158+500 including ACC Link Road from Km 0+00 to Km 2+003) Greenfield Alignment (Package-2) in the State of Himachal Executed on Hybrid Annuity Mode (HAM)
Rehabilitation and Upgrading of Existing 2 Lane to 4 Lane from Bhangbar (Near Ranital) to Kangra Bypass Section of NH-88 (New NH-205) up to intersection with NH-154 (Design Chainage KM 175+270 to KM 193+400, Design Length-18.130 KM) in the state of Himachal Pradesh under NH (O) on HAM Mode (Package-VB).
Development of additional RESA on either end on Runway 10-28 at Calicut Airport. SH: Construction of embankment with slope protection, drainage system and associated works for additional RESA on either end on Runway 10-28. (2nd Call).
Four Lanning of Nerchowk PANDOH Bypass section NH-21, (Package 1 From KM 190.000 To KM 221.305) Under NHDP-IV In the state of Himachal Pradesh on EPC Basis.

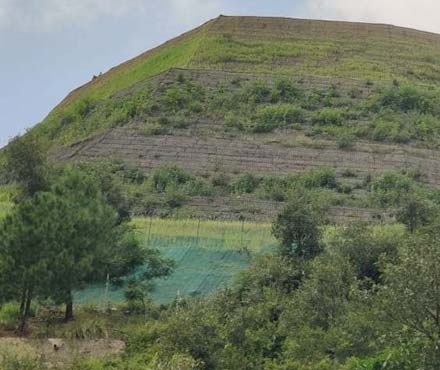

PROJECT: Restoration of Basic Strip of Runway, Prevention of soil Erosion, Extension of Apron and associated works at Shimla Airport on Design & Build basis.
